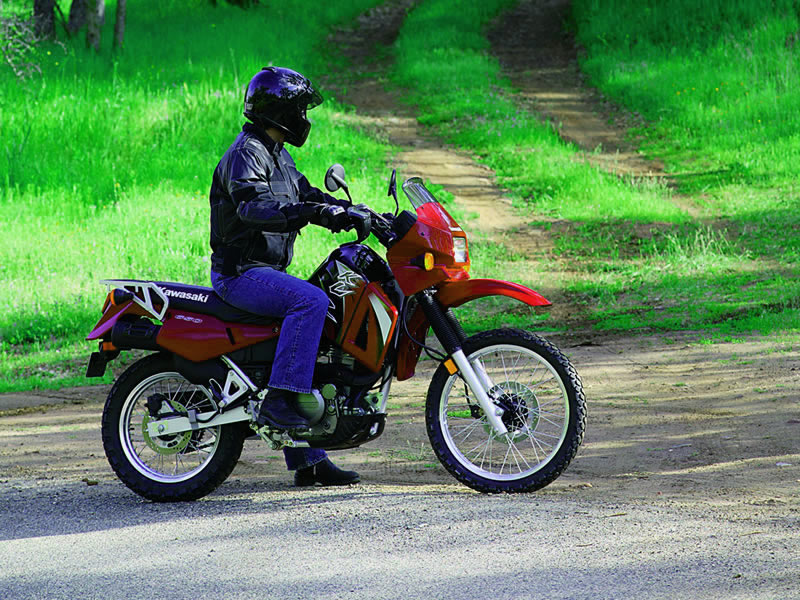

2004 Kawasaki KLR650

World of Dual Purpose
Off-road or on, Kawasaki's KLR650 motorcycle provides the ultimate in adventure at a superb value. It's no wonder that so many riders have chosen this dual-purpose bike for lengthy transcontinental rides.
Designed with both street and dirt riding in mind, the large-displacement KLR more than meets adventure-touring requirements, thanks to an engine that cruises comfortably at highway speeds, an ample and comfortably padded seat for extended saddle time, a large 6.1-gallon fuel tank, handguards, and a mini fairing to help block the wind.

The KLR's get-up-and-go comes courtesy of a strong, dual overhead cam, four-valve liquid-cooled 651cc engine. The motor provides a wide range of power equally suitable for negotiating low-speed trails and cruising at a more brisk highway pace. An engine crankshaft counterbalancer and electric starter provide additional rider comfort and convenience.

The KLR650's frame is made of round-section high-tensile steel, the same strong yet lightweight material used to support Kawasaki's world-class KX motocross machines. A detachable rear sub-frame subframe simplifies maintenance by providing easier access to the airbox, carburetor and rear shock. Adjustable, long-travel suspension ensures a plush ride both on pavement and trails.

A U.S. Forestry Service-approved spark arrestor provides access to any Forest Service road open to licensed vehicles, while a sturdy engine guard protects the cases from loose rocks and gravel. With an optional Kawasaki tank bag and soft luggage on the large standard rear rack, KLR650 owners can tote enough gear for an extended trip to any remote location.







Features
-A compact, smooth, reliable and proven design
-Special tuning to improve low and mid-range power

-Light, silent cam chain reduces engine noise

-Oil-level window permits easy and accurate inspection

Liquid Cooling:

-Even-running temperatures mean no power fade on hot days and longer engine life

-Allows tighter engine clearances for quieter running

-Automatic fan keeps things cool even in traffic

-Includes a temperature gauge

Four-valve Cylinder Head:

-Better breathing for more power at high rpm

-Compact combustion chamber for increased compression ratio without detonation on today's gasolines

-Provides maximum valve area for optimum flow

-Boosts low-end torque

Double Engine Balancer:

-Engine runs smoothly from idle to redline for rider comfort and less fatigue on long rides

Capacitor Discharge Ignition with Electronic Advance:

-Delivers hot spark at the right time no matter what the rpm

-Fewer moving parts for long, trouble-free life

Five-speed Transmission:

-Designed to handle the engine's unique power characteristics

-The engine's broad torque curve only requires five speeds for off-road and relaxed highway cruising

Handlebar-mounted Choke:

-Convenient location makes starting and warm-up easier

Long-travel Front Suspension:

-Designed to provide a good compromise between the requirements of on- and off-road riding

-Air-adjustable front forks

Semi-double Cradle Frame:

-Made of the same high-tech, round-section, high-tensile steel used in our world-class KX motocross bikes

Engine Guard:

-Protects engine from rocks and trail debris when the going gets tough

Detachable Rear Sub-frame:

-Simplifies maintenance by providing better access to the rear shock, airbox and carburetor

-Large rear cargo rack included

UNI-TRAK Rear Suspension:

-Lowers the center of gravity for better handling

-Progressive rate provides a smoother, more controlled ride

-Features a five-way preload shock absorber with four-way rebound damping

Front and Rear Disc Brakes:

-Powerful and controllable disc brakes produce quick, sure stops

Electric Starter:

-Easy and convenient starting

Lighting and USFS- Approved Spark Arrester:

-Street-legal lighting with turn indicators

-Forestry Service-approved spark arrestor keeps the KLR650 environmentally -friendly

Large 6.1-gallon Fuel Tank:

-Significant capacity permits adventure touring






Specifications
Engine: Four-stroke, DOHC, four-valve single
Displacement: 651cc

Bore x stroke: 100.0 x 83.0mm

Compression ratio: 9.5:1

Cooling: Liquid

Carburetion: Keihin CVK40

Ignition: Electronic CDI

Transmission: Five-speed

Frame: Semi-double cradle, high-tensile steel

Rake / trail: 28° / 4.4 in.

Suspension type, front: 38mm leading axle, air-adjustable fork

Suspension adjustments, front: Air-adjustable preload

Suspension type, rear: UNI-TRAK® single-shock system

Suspension adjustments, rear: 5-way preload and 4-way rebound damping

Wheel travel, front: 9.1 in.

Wheel travel, rear: 9.1 in.

Tire, front: 90/90 x 21

Tire, rear: 130/80 x 17

Brakes, front / rear: Hydraulic disc / Disc

Overall length: 86.8 in.

Overall width: 37.0 in.

Overall height: 53.0 in.

Ground clearance: 9.4 in.

Seat height: 35.0 in.

Dry weight: 337 lbs.

Fuel capacity: 6.1 gal.

Wheelbase: 58.9 in.

Color: Aztec Red
